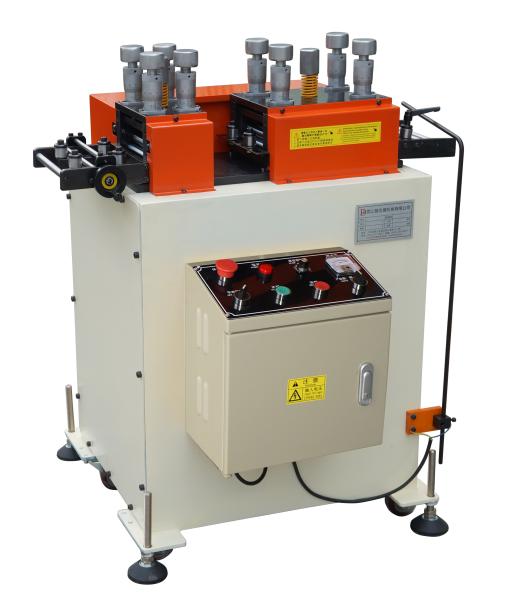

thin thickness material high accuracy straightening/ leveling-coil feeding line

Model:
SNS series

Applications:
Computer connectors, electronic shrapnel, wire frames, precision terminals, connectors, mobile phones, rotating shafts, digital precision electronic products, such as stamping before leveling operations.

Levelling details:
1, SNS series of ultra precision leveling machine is designed for the material thickness of 0.1-1.2mm, width of thin material material precision stamping leveling 0-300mm and professional design automation equipment, materials, especially suitable for thin stainless steel, copper, iron leveling and aluminum sheet thickness is thin, can achieve the leveling effect of the perfect development for precision machining objective.
2, using the 22 leveling roller, and the roller path back to install the work roller, ensure a sufficient power in precision machining, fundamentally eliminate the stress of the remaining material.
3, the upper working roller adopts advanced 4 point type separation table, fine-tuning device, debugging simple, high precision.
4, all the rollers are independent universal joint drive, the gap is small, uniform speed, it is difficult to damage the surface of the product.
5, the Japanese system of precision bearing, automatic oil circulation lubrication device and a recovery device equipped with intermittent unique, reducing gear wear and prolong its service life, can be a long time in the high temperature working condition, ensure the high precision leveling.
6, the roller is made of bearing steel (SUJ2), HRC60 after heat treatment quenching degree after hard chromium plating, grinding, high hardness, abrasion and long service life.
7, leveling roller with reinforcement device, better guarantee flatness.
8, the use of frequency control, with more closely.

WxiJiniu Machinery Co.,ltd. formerly known as Wuxi Metallurgical Machinery Factory, registered trademark for "Jinqiu" brand, was founded in June 1969. It is in Wuxi city, 150 kilometers far from Shanghai city. We have been to stated enterprise, since 2002, we recombined to private company, and got fast development, we are one big group now, our group mainly produces hydraulic press brake, hydraulic shears, coiling feeding line--especially for aluimnum cap making, slitting line, cut to length, transformer machines....and other series product. It is one of the earliest factory in China to make these metal sheet machines.

The company covers an area of 62,000 square meters with 300 people. It has advanced production equipment’s with imported large CNC gantry milling machine, imported large CNC boring and milling machine, 100-ton carriageway and a series of iconic devices. Our excellent design team can make personalized products according to the users’ demands. At the same time, we have established long-term cooperation with some famous university, such as Jiangnan university, Nanjing University, Jiangsu University. Through our research staff innovation and hard work, we have received dozens of patents. At the same time, we have ISO and CE certifications.

In the domestic market, we set up many offices in different cities, Beijing, Kunming, Hefei…And to the international market, in many countries, we have sales and service agent, USA, Peru, Brazil, India, Russia…. Our engineers have been to those countries to install our machines. Because of our machine good quality and good after-sales service, the customers give us very high commend.

We hope to set up very good and long cooperation with more customers around the word.
