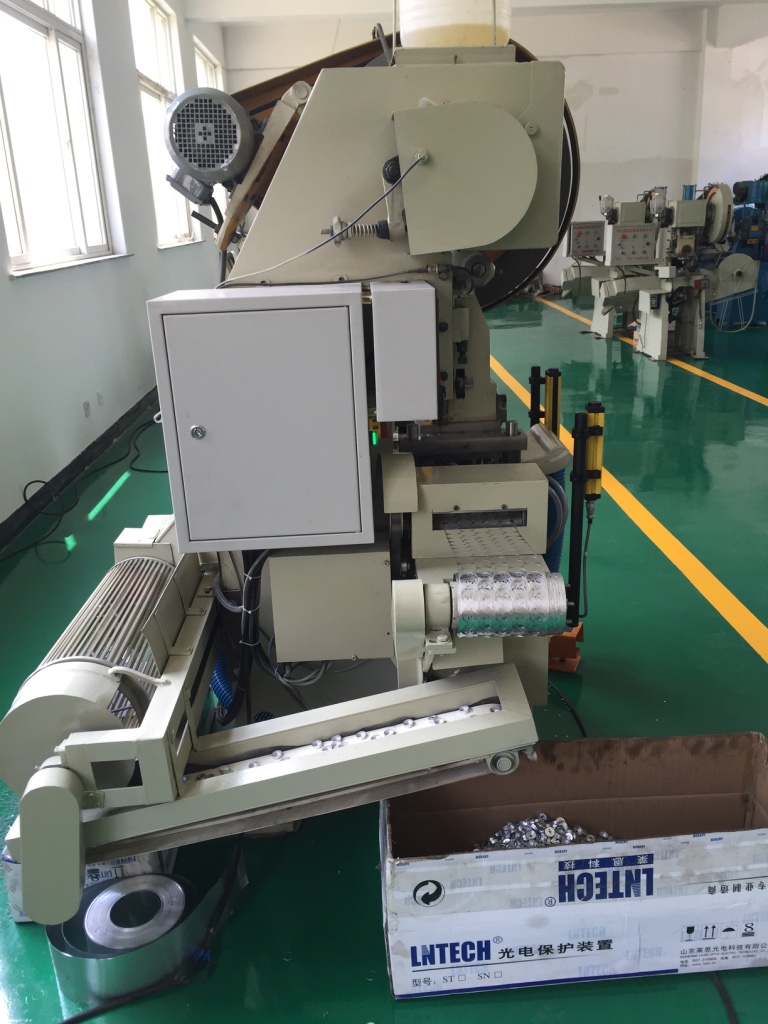

punching machine for aluminum cap production with aluminum coil feeding line

complete line for wine cap making:

the compelte wine bottle aluminum cap line insistes punching machine, cap die--one time punching forming die, cap aluminum coil holder frame, aluminum coil brush oil, blow finished cap, pull coil material servo control system, pull coil material, waste/useless material coilling, separate aluminum cap and waster/useless ring--the caps come out, the waster rings stay in the collection box, die protection system: during punching, it can protect die, if any cap is wrong, this system will stop the machine to protect die

Usage:

In China, only us can produce the whole line for wine cap and medicine cap. This line needs a lot of experiece to make let punching and feeding line cooperate very well. We are the most professional factory, in China, 80-90 cap makers use our machine.This cap professional line is specially designed for plastic mold, medicine bottle cap, wine bottle cap, cosmetic cap, it is used with high-speed punching machine

Cap making line technical paramters:

1)Punching machine/mechanical press machine details

2) auxliary devices for the cap production line and making steps:

Wine cap production Step 1:cap punching die with 6 cavity---it means one stroke, we can get 6 caps, max we can produce 16 caps

Wine cap production Step 2:Cap aluminum coil holder frame

Wine cap production Step 3:Aluminum coil brush oil

Wine cap production Step 4:-Blow cap

Wine cap production Step 5:pull coil material servo control system

Wine cap production Step 6:Pull coil material and waste material coiling

Wine cap production Step 7:separate aluminum cap and waste ring,The caps come out, the waste rings stay in this cabilet

Wine cap production Step 8:Die protection system: during punching, it can protect die, if any cap is wrong, this system will stop the machine to protect die

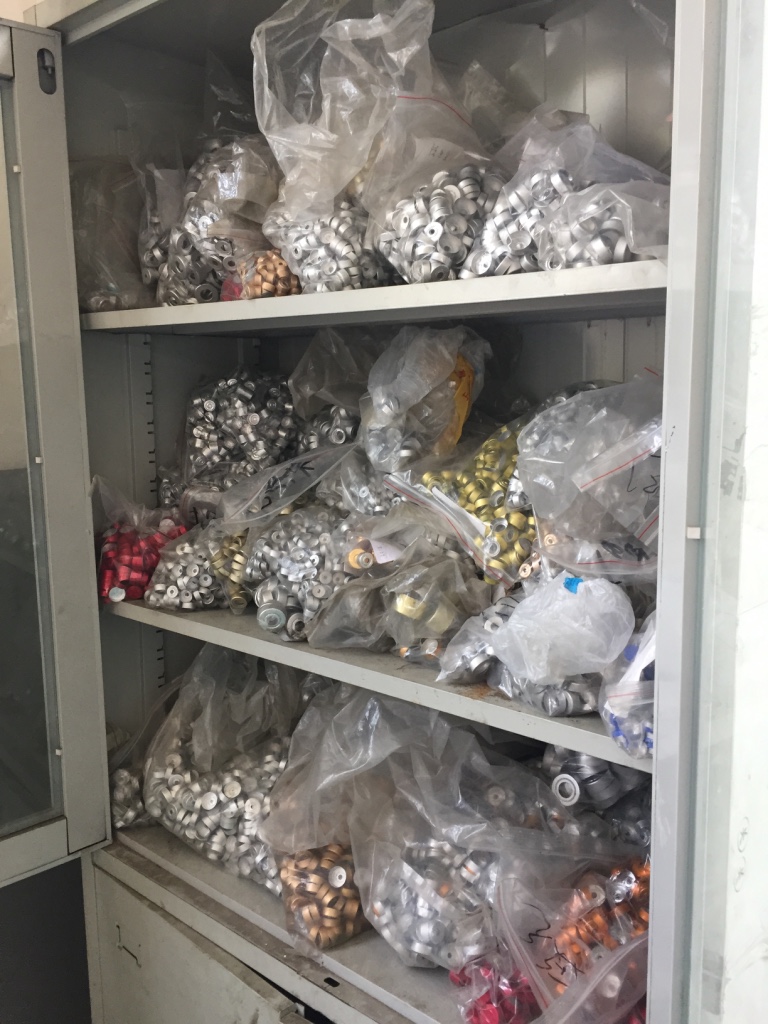

3)More details pictures

WxiJiniu Machinery Co.,ltd. formerly known as Wuxi Metallurgical Machinery Factory, registered trademark for "Jinqiu" brand, was founded in June 1969. It is in Wuxi city, 150 kilometers far from Shanghai city. We have been to stated enterprise, since 2002, we recombined to private company, and got fast development, we are one big group now, our group mainly produces hydraulic press brake, hydraulic shears, coiling feeding line--especially for aluimnum cap making, slitting line, cut to length, transformer machines....and other series product. It is one of the earliest factory in China to make these metal sheet machines.

The company covers an area of 62,000 square meters with 300 people. It has advanced production equipment’s with imported large CNC gantry milling machine, imported large CNC boring and milling machine, 100-ton carriageway and a series of iconic devices. Our excellent design team can make personalized products according to the users’ demands. At the same time, we have established long-term cooperation with some famous university, such as Jiangnan university, Nanjing University, Jiangsu University. Through our research staff innovation and hard work, we have received dozens of patents. At the same time, we have ISO and CE certifications.

In the domestic market, we set up many offices in different cities, Beijing, Kunming, Hefei…And to the international market, in many countries, we have sales and service agent, USA, Peru, Brazil, India, Russia…. Our engineers have been to those countries to install our machines. Because of our machine good quality and good after-sales service, the customers give us very high commend.

We hope to set up very good and long cooperation with more customers around the word.
