0.6-6.0 mm thickness 3 in 1 coil feeding line for auto parts

Model:
NCSF8

Application:
Suitable for 0.6-6.0mm thickness sheet thickness coil uncoiler, straightener & feeder for auto parts

Characteristic:
1. 3 in 1 line specially designs up and bottom the straightening rollers for strength thicker. It is suitable for 0.6--6.0 mm medium thickness material with 70-1600mm width coil punching uncoiling, straightening and feeding

2, Uncoiler frame adopts the 4-vane design, blade curvature matches with coil inner diameter,andthe blade surface by hard plating processing, smooth wear, will not damage the material in the process of using, diameter expansion using rotary cylinder, hydraulic expansion, coil drum with wedge slider structure form, and the brake drum, effectively prevent materials loosing when braking the rotation.
3. The width of the discharge material is adjusted by the screw of the two retaining roller. When the material is discharged, the material is lifted by the cylinder to lift the outer gear roller, and then the material is loaded and discharged.

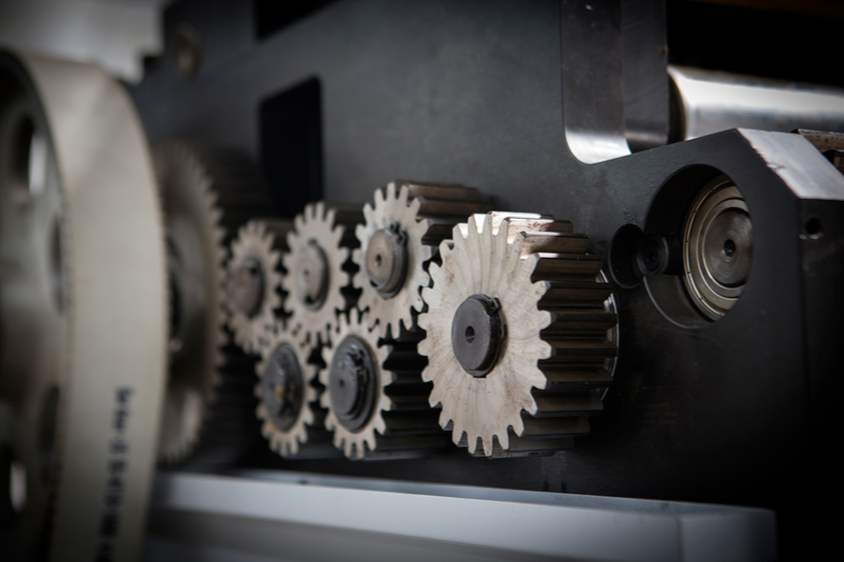

4, the straightening roller with high alloy bearing steel, a series of heat treatment (quenching + high frequency treatment + hard chromium layer), strictly ensure the straightening roller steel and surface finish and the degree of correction, correction process is guaranteed in the correction of surface properties of materials, correction of roller surface hardness up to HRC60, to ensure that high precision and high wear resistance.
5, the feed inlet of leveling head with two roller pinch pressing structure, motor reducer and drives the upper and lower pinch roller, the material feeding leveling machine.
6, the use of four worm gear for adjustment, by hand wheel rotation, worm drive, worm wheel, drive the upper slider for lifting, so as to achieve the amount of pressure regulation. The adjusting hand wheel is provided with an adjusting dial plate, and the adjusting amount is accurately displayed.
7, feeding material with support rail device, so that the leveling material can be stable and flat into the mold work. (this device is removable)
8 , the body lift is driven by four worm electric drive, which can adjust the feed line height easily.
9 , external manual control handle, easy to debug the mold.
*: choose and buy configuration: leveling, fine-tuning, servo control device




3 in 1 Dimension Drawing:







3 in 1 Stranghtening Performace Table:

Machine Models:

WxiJiniu Machinery Co.,ltd. formerly known as Wuxi Metallurgical Machinery Factory, registered trademark for "Jinqiu" brand, was founded in June 1969. It is in Wuxi city, 150 kilometers far from Shanghai city. We have been to stated enterprise, since 2002, we recombined to private company, and got fast development, we are one big group now, our group mainly produces hydraulic press brake, hydraulic shears, coiling feeding line--especially for aluimnum cap making, slitting line, cut to length, transformer machines....and other series product. It is one of the earliest factory in China to make these metal sheet machines.

The company covers an area of 62,000 square meters with 300 people. It has advanced production equipment’s with imported large CNC gantry milling machine, imported large CNC boring and milling machine, 100-ton carriageway and a series of iconic devices. Our excellent design team can make personalized products according to the users’ demands. At the same time, we have established long-term cooperation with some famous university, such as Jiangnan university, Nanjing University, Jiangsu University. Through our research staff innovation and hard work, we have received dozens of patents. At the same time, we have ISO and CE certifications.

In the domestic market, we set up many offices in different cities, Beijing, Kunming, Hefei…And to the international market, in many countries, we have sales and service agent, USA, Peru, Brazil, India, Russia…. Our engineers have been to those countries to install our machines. Because of our machine good quality and good after-sales service, the customers give us very high commend.

We hope to set up very good and long cooperation with more customers around the word.
