    16 - 18 cm Fan Wire Guard Hydraulic Press Machine 25 Ton Capacity

    Ask Lasest Price
    Brand Name : Jinqiu
    Model Number : YD30-25
    Certification : CE and CQC
    Price : USD or RMB
    Payment Terms : L/C, T/T
    Supply Ability : 150 pcs per month
    Delivery Time : 55-60 days
    • Product Details
    • Company Profile

    16 - 18 cm Fan Wire Guard Hydraulic Press Machine 25 Ton Capacity

    Fan guard Hydraulic Press Machine 25 ton --complete machines for wire guard


    Machines list for making fan guard:


    ITEM


    specifications and models


    UNIT


    QTY

    A single point of machine18KVAPCS1
    Outer ring machine40KVAPCS1
    The central machine40KVAPCS1
    hydraulic press machinery7.5KW 25TPCS1
    servo CNC machine circle round2.2KWPCS1
    Weld Spot-weld Machine18KVAPCS1
    flat edge trimmer1.1KWPCS1

    The following pictures are showed by above sheet:

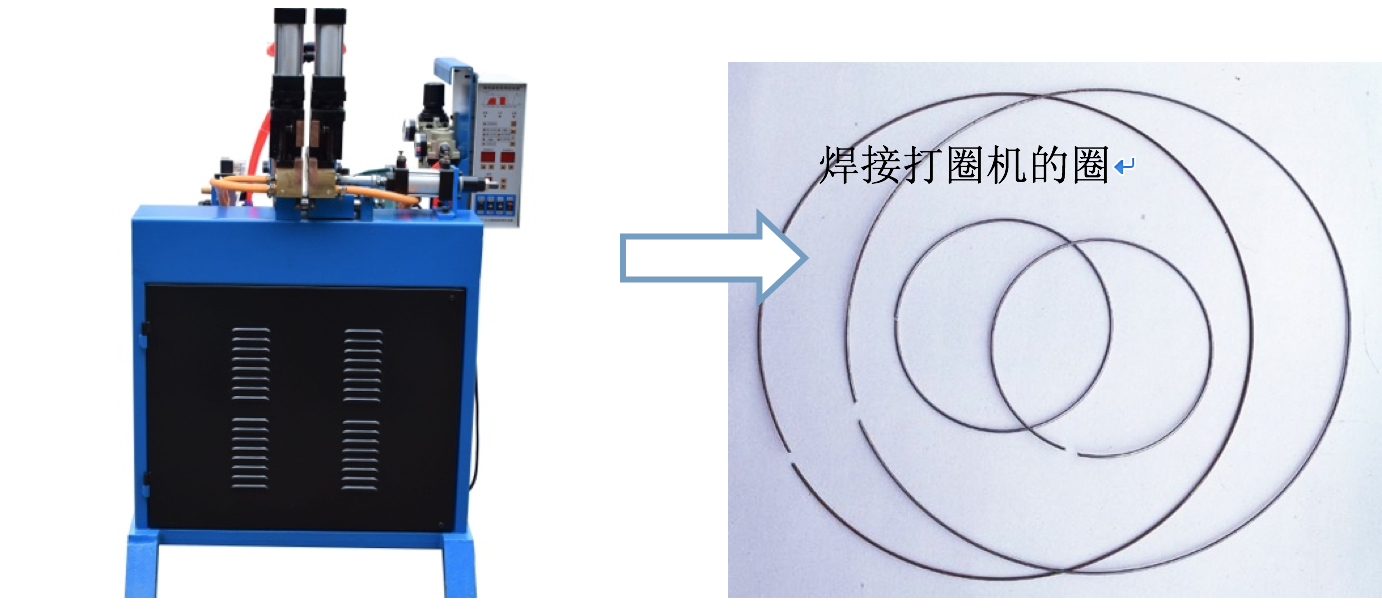

    1)A single point of machine for fan guard

    power supply:380V-50HZ
    power16KW
    production quantity800-1000 PCS
    current10-20A
    size(L*W*H)1750*1000*1370(mm)
    weight480KG
    Air Comsumption:0.5MPa

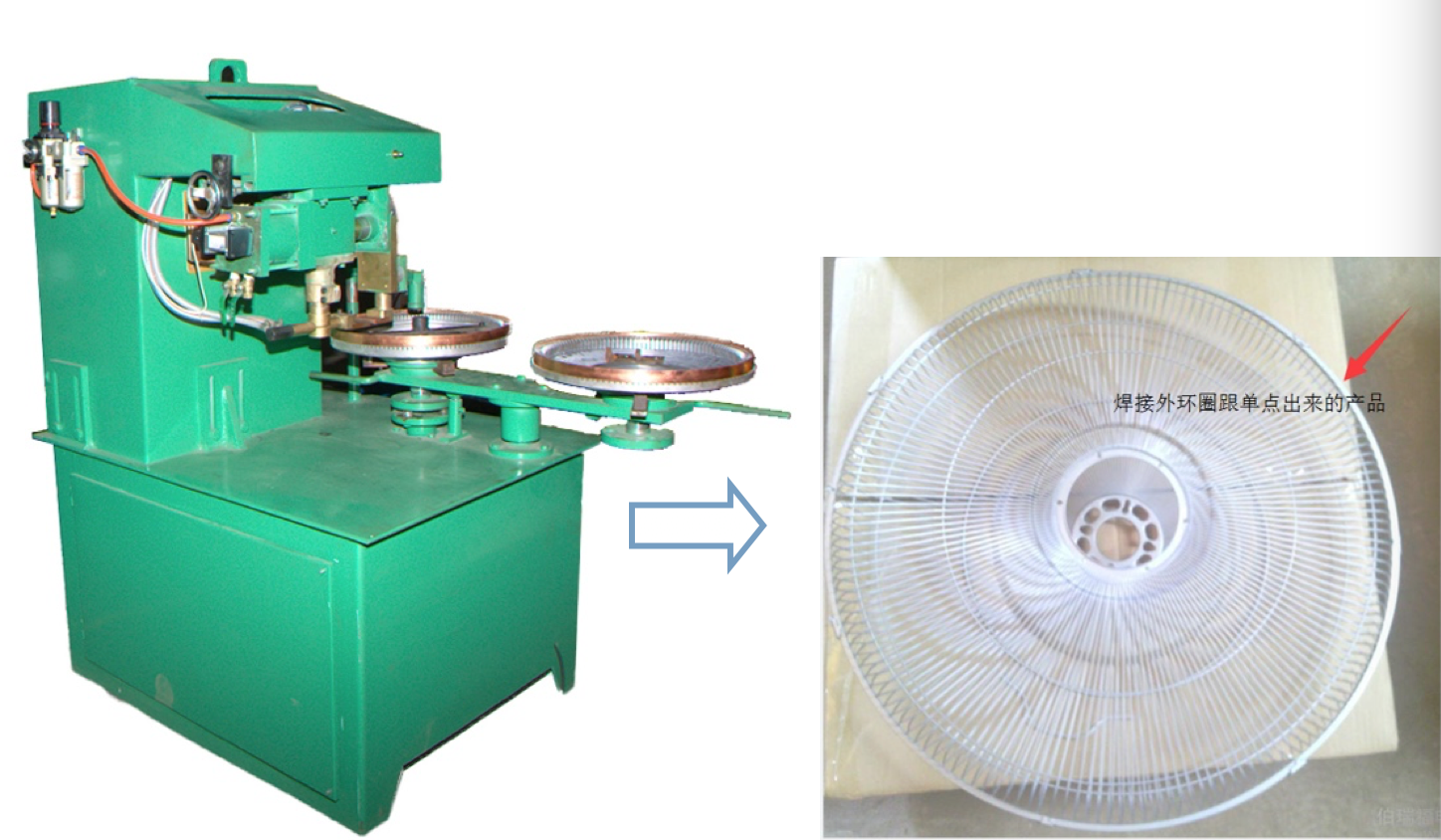

    2)Outer ring machine for fan guard

    power supply:380V-50HZ
    power (kw):50KW
    production quantity2000 PCS
    current:30-40A
    size(L*W*H)1650*900*1600(mm)
    weight:450KG
    Air Comsumption:0.5MPa


    3)The central machine for gan guard
    power supply:380V-50HZ
    power (kw):50KW
    production quantity:4000 pcs
    current:30-40A
    size(L*W*H)1300*700*1850(mm)







    4) hydraulic press machine for fan guard:

    power supply:380V-50HZ
    fan guard size16-18cm
    motor power kw:7.5KW
    production quantity:7000-8000 pcs
    current:30-50A
    size(L*W*H)1150*1000*2500mm
    weight:1200KG












    5)servo CNC machine circle round for fan guard:

    power supply:380V-50HZ
    motor power (kw):1.5KW
    production quantity:15000 pcs
    current:3-5A
    size(L*W*H)1500*850*1480mm

    power supply:

    350KG










    6) Weld Spot-weld Machine for blower guard:

    power supply:380V-50HZ
    motor power(kw):25KW
    production quantity:9000 pcs
    current:10-20A
    size(L*W*H)700*900*1050
    weight:200KG
    Air Comsumption:0.5MPa












    7)flat edge trimmer for blower guard:

    power supply:380V-50HZ
    motor power(kw):1.1KW
    production quantity:8000 pcs
    current:3-5A
    size(L*W*H)460*550*900
    weight:120KG
