The Manufacturer history in Transformer equipments/Machine:

we have been dedicating on development and production of transformer manufacturing equipment since 1984--the earest factory in China,with 120 staffs in this department.The products are widely adopted by customers all over the country and high praised by the users. In the equipment installation and commissioning phase, we can, upon the request of the buyer, send our onsite service force to give local technical instructions, free of charge, and provide training until the operator can skilled run the equipment independently.

Our Products have lasting performance, reliable quality, high efficiency and easy operation. The latest and most practical equipment for producing tranformer of wave-shape oil tank.

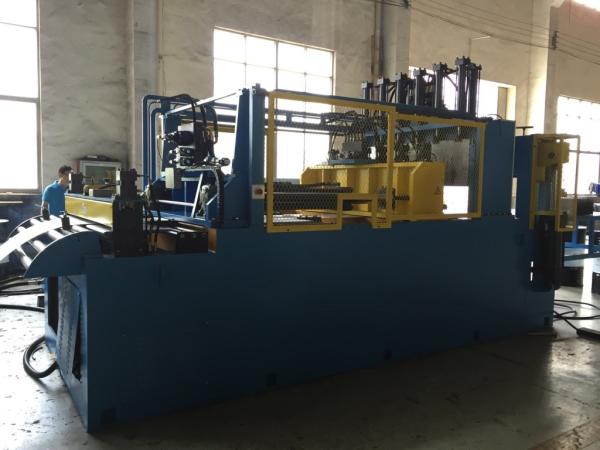

BW1600 -Corrugated Band Former

BW-1600Corrugated Band Former Main Technical Parameters

(Remarks: all of the technical parameters as below deviation as no more than 0.2%

1. Steel Plate Width :B 300 ~1600mm
2. Steel plate thickness:S 1.0 ~1.5mm
3. Corrugation height :H 50~400mm
4. Corrugation pitch:t ≥40mm
5. Net clearance between corrugations :e 8mm
6. Number of corrugation band sets :n 1~4
7. Corrugation band length :L ≤2000mm
8. Folding height:C 15~300mm
9. Length of box board tips(front gap) :a ≥40mm
10. Length of box board tips(rear gap) :b ≥40mm
11. Total power of motors:W 35Kw
12. Total weight: 25500Kg
13. Floor space :13000×7100mm
14. Equipment running frequency: 50Hz
15. voltage::380V,3phase
16. Unroller Max. Bearing weight :12000Kg
17. Feeding lifter Max. Bearing weight:12000Kg
18. Roll Coil inner diameter scope (Axis unrolleris hydraulic Braking open up and shrink):470~520mm
19. Roll Coil Max. diameter :1200mm
20. Unroller revolve speed:12rpm
21. Hydraulic System need equip two individual filter system(Iron or metal filter system and normal material filter system)
22. Corrugated Band Former need to meet Strength tendon embossing function (include provide related Template)

BW-1600 Corrugated Band Former Electrical and electronic control element supplier list(Domestic configuration)

WxiJiniu Machinery Co.,ltd. formerly known as Wuxi Metallurgical Machinery Factory, registered trademark for "Jinqiu" brand, was founded in June 1969. It is in Wuxi city, 150 kilometers far from Shanghai city. We have been to stated enterprise, since 2002, we recombined to private company, and got fast development, we are one big group now, our group mainly produces hydraulic press brake, hydraulic shears, coiling feeding line--especially for aluimnum cap making, slitting line, cut to length, transformer machines....and other series product. It is one of the earliest factory in China to make these metal sheet machines.

The company covers an area of 62,000 square meters with 300 people. It has advanced production equipment’s with imported large CNC gantry milling machine, imported large CNC boring and milling machine, 100-ton carriageway and a series of iconic devices. Our excellent design team can make personalized products according to the users’ demands. At the same time, we have established long-term cooperation with some famous university, such as Jiangnan university, Nanjing University, Jiangsu University. Through our research staff innovation and hard work, we have received dozens of patents. At the same time, we have ISO and CE certifications.

In the domestic market, we set up many offices in different cities, Beijing, Kunming, Hefei…And to the international market, in many countries, we have sales and service agent, USA, Peru, Brazil, India, Russia…. Our engineers have been to those countries to install our machines. Because of our machine good quality and good after-sales service, the customers give us very high commend.

We hope to set up very good and long cooperation with more customers around the word.
