Vertical Shearing Line of Transformer Silicon Steel Sheet --Slitting Line

Infrastruture:

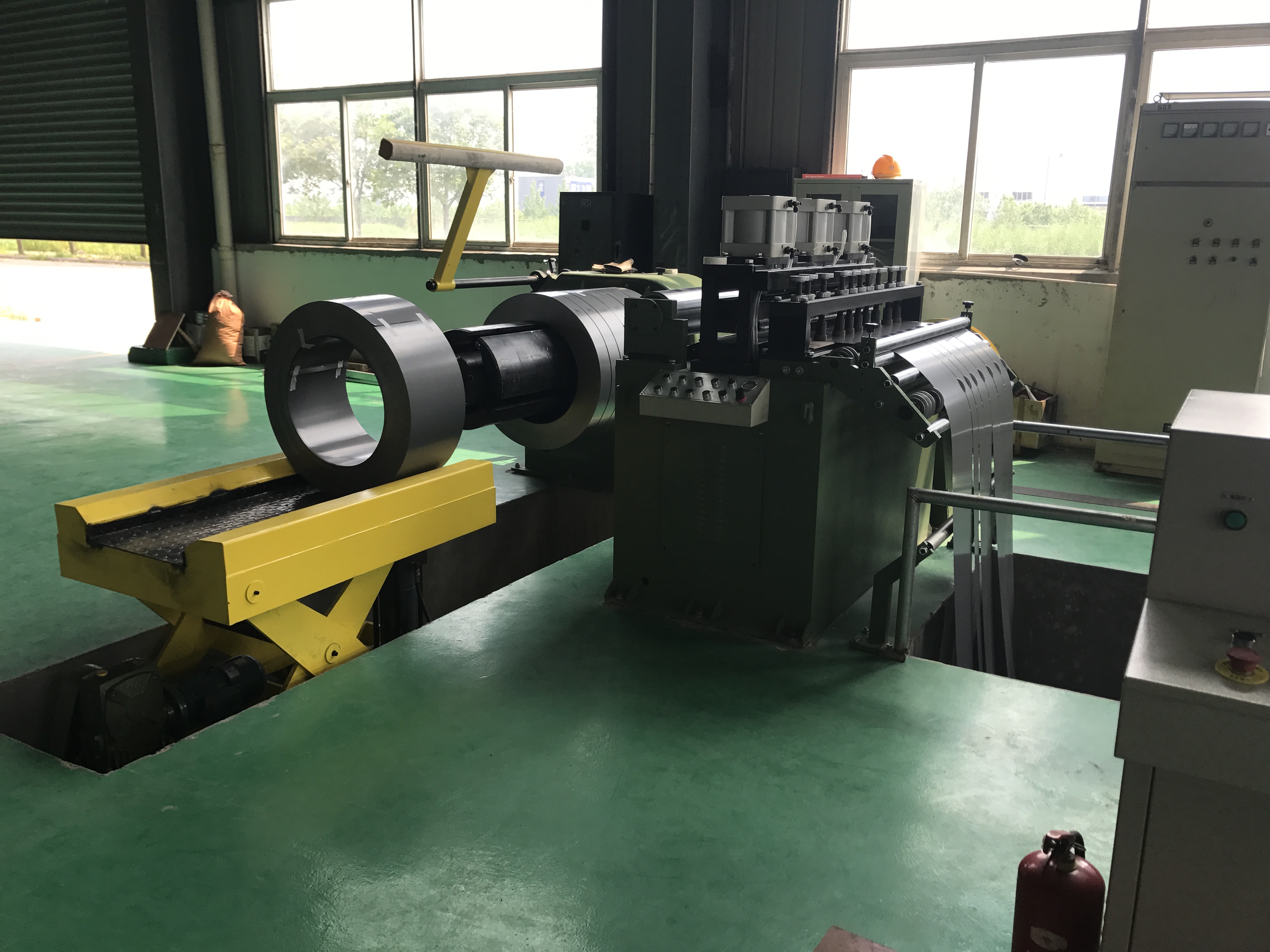

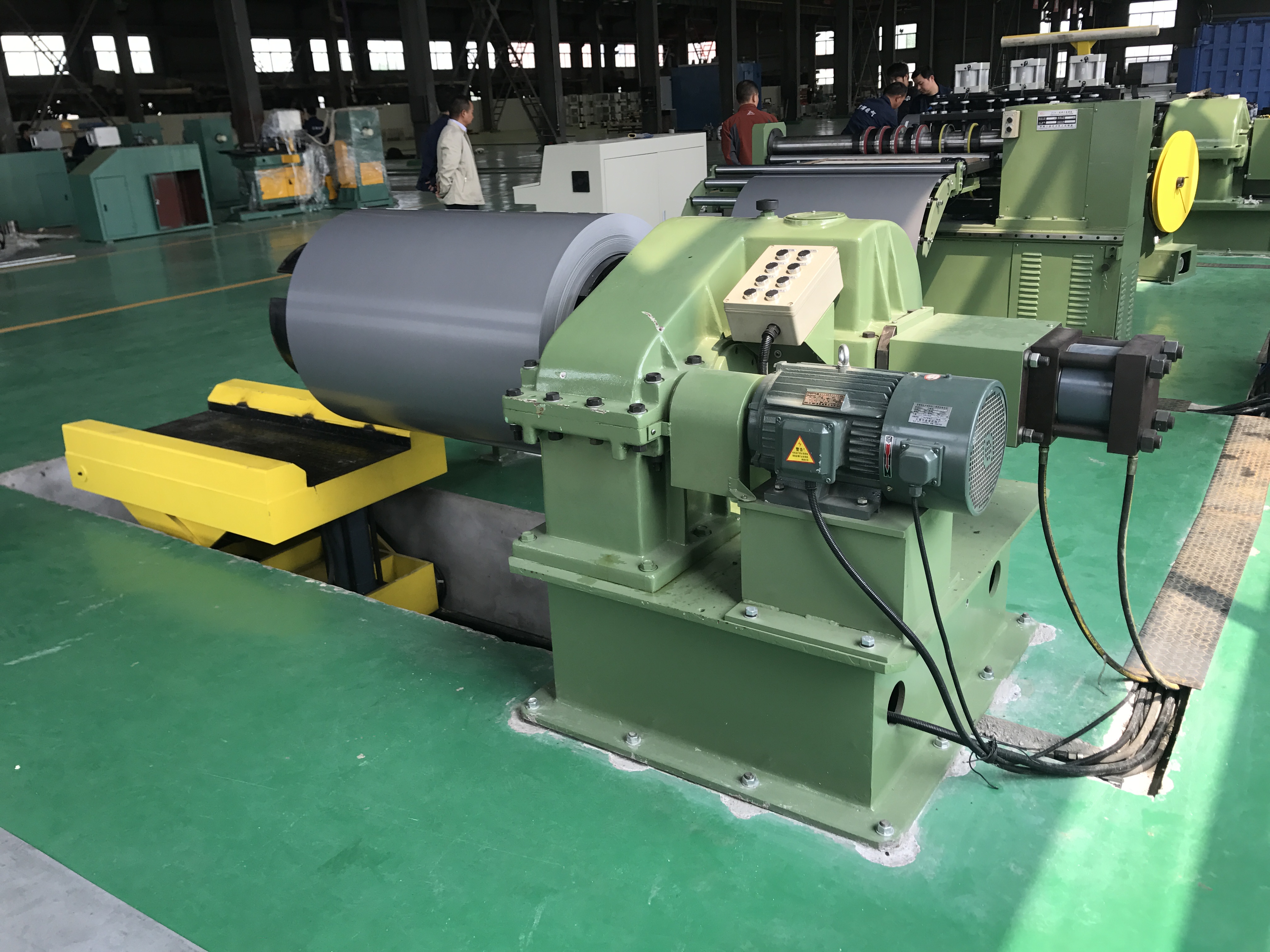

Model ZJX-1250 vertical Shearing Line of Transformer silicon steel sheet/ silicon slitting line is a special equipment that shears the silicon steel sheets into strips. it is composed with different units as material releasing, winding,material guiding and supporting, vertical shearing and straining. This equipment is running under the international advanced drawing and shearing technique, supplied with sintered carbied hobbing cutter, and automatic controlled by PLC, so that a reliable and precision running is ensured.

Main Technical Parameters:

Inner diameter of coiled material: 500mm

weight of coiled material: 7000kgs

Max width of coiled material: 1250mm

Shearing thickness: 0.23-0.35mm

shearing width: 40-1250mm

max shearing speed: 60m/min

shearing burr: less than 0.03mm

unverticality one side: less than 0.2mm/2m

shearing error on width: 0.1mm

knife number: 11 pay

grinding can be a few meters of shear: 100000m

scissors outer diameter: 250mm

scissors trunnion: 125mm

total power of motors: 30 kw

Floor space: 10000x5000 mm

The Manufacturer history in Transformer equipments/Machine:

we have been dedicating on development and production of transformer manufacturing equipment since 1984--the earest factory in China,with 120 staffs in this department.The products are widely adopted by customers all over the country and high praised by the users. In the equipment installation and commissioning phase, we can, upon the request of the buyer, send our onsite service force to give local technical instructions, free of charge, and provide training until the operator can skilled run the equipment independently.

Our Products have lasting performance, reliable quality, high efficiency and easy operation. The latest and most practical equipment for producing tranformer of wave-shape oil tank.

The warranty period for the machine is one year, and the user enjoys free warranty service within the warranty period. if the machine has failure beyond the warranty period, we will also help the user remove the difficulty and try our best to maintain and repair the machine with our zealously heart. we off lifelong service and spare parts .

Client Satisfaction
Being a clinet focused organization; we make every possible effort to supply products as per our client's desires and expectation. we also provide them customization solution, in which the products are designed and manufacured according to the specified details of our respectable clietele. Our assurance to make timely delivery of the bulk orders has also enable us in estalishing a respectable place in industry.

WxiJiniu Machinery Co.,ltd. formerly known as Wuxi Metallurgical Machinery Factory, registered trademark for "Jinqiu" brand, was founded in June 1969. It is in Wuxi city, 150 kilometers far from Shanghai city. We have been to stated enterprise, since 2002, we recombined to private company, and got fast development, we are one big group now, our group mainly produces hydraulic press brake, hydraulic shears, coiling feeding line--especially for aluimnum cap making, slitting line, cut to length, transformer machines....and other series product. It is one of the earliest factory in China to make these metal sheet machines.

The company covers an area of 62,000 square meters with 300 people. It has advanced production equipment’s with imported large CNC gantry milling machine, imported large CNC boring and milling machine, 100-ton carriageway and a series of iconic devices. Our excellent design team can make personalized products according to the users’ demands. At the same time, we have established long-term cooperation with some famous university, such as Jiangnan university, Nanjing University, Jiangsu University. Through our research staff innovation and hard work, we have received dozens of patents. At the same time, we have ISO and CE certifications.

In the domestic market, we set up many offices in different cities, Beijing, Kunming, Hefei…And to the international market, in many countries, we have sales and service agent, USA, Peru, Brazil, India, Russia…. Our engineers have been to those countries to install our machines. Because of our machine good quality and good after-sales service, the customers give us very high commend.

We hope to set up very good and long cooperation with more customers around the word.
