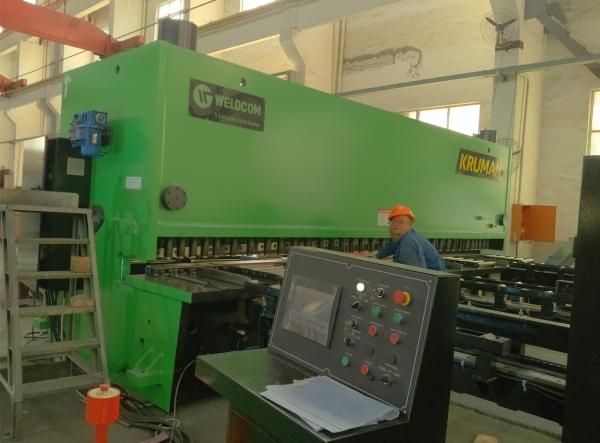

16mm Thckness 6000mm Hydraulic Cnc Shearing Machine For Metal Plate , Low Noise

Cutting machinery Technical Parameters:

Mode: QC11K-16X6016

Shearing Size: thickness 16mm, length 6016mm

Shearing Angle: 0.5-2.5 degree

Plate Clamps: 20 pieces

Strokes: 4.5 times per min

Back gauge range: 20-1000 mm

Main Motor: 55 Kw

NC control system: China Estun E21S, with follwing founction:

1) control back gauge position

2) cutting gap control

3) cutting time control

4) parameter backup and restore

Volume of oil tank: 1970L

Weight: 47000 kgs

Overall Dimensions: Length 7345mm

Machine Width 2820 mm

Machine Height 3355 mm

CNC hydraulic shearing machine introduction:

1. Adopting rolling guild way with three-point suppoort, cutting accuracy could be maintained well

2. Rectangular blade has four edges to extend service life

3. The cutting angle could be adjusted to reduce the amount of deformation of the sheet

4. Blade gap could be adjusted accuratedly and rapidly, the top blades stroke could be adjusted stepless to improve cutting rage

5. Matching variety of back gauges and blade gaps which controled by CNC system

Main Details:

Condition: New

Material/ Metal Processed: Carbon Steel Q235 or Q345

Extra Service: Machining

Electric componets: Schneider famous brand

Other parts: Ball screw, servo motor....

Place of Origin: Wuxi city, Jiangsu, China,

Machine Type: Hyraulic Shearing Mchine

Power: Hydraulic

Color: white, blue, yellow....

Control syste: E200S, DAC310,DAC 360, OR DTC660

Usage range: cutting metal sheet.

Packageing & Delivery

Packaging ways: metal frame pallet

Delivery time: 55-60 days

Welded steel plate, the frame consists of right and left wall boards, working table, oil box, slot steel and etc. The stress of the welded parts can be eliminated by vibration. The machine enjoys high accuracy and high strength and can be transported easily.

Why Choose Us?

1)we have rich experiece and big scale factory.

Our company was founded in 1969, we are the earliest and biggest factory for metal sheet machines in China with 47 years history. Our company covers an area of 62,000 square meters . We have 300 employees. In many countries, there are our machine, such as in Brazil, Algerial, Saudi, Latvia, Russia, India.....Many users.

2) All steel plates are made heat treatment, and before delivery, we will install the shearing machine and let the machine run several days to make sure the machine has no problem

3) We have engineer who can speak english, if the machine has any problem, our engineer can speak and guide user to solve the problem at the first time.

WxiJiniu Machinery Co.,ltd. formerly known as Wuxi Metallurgical Machinery Factory, registered trademark for "Jinqiu" brand, was founded in June 1969. It is in Wuxi city, 150 kilometers far from Shanghai city. We have been to stated enterprise, since 2002, we recombined to private company, and got fast development, we are one big group now, our group mainly produces hydraulic press brake, hydraulic shears, coiling feeding line--especially for aluimnum cap making, slitting line, cut to length, transformer machines....and other series product. It is one of the earliest factory in China to make these metal sheet machines.

The company covers an area of 62,000 square meters with 300 people. It has advanced production equipment’s with imported large CNC gantry milling machine, imported large CNC boring and milling machine, 100-ton carriageway and a series of iconic devices. Our excellent design team can make personalized products according to the users’ demands. At the same time, we have established long-term cooperation with some famous university, such as Jiangnan university, Nanjing University, Jiangsu University. Through our research staff innovation and hard work, we have received dozens of patents. At the same time, we have ISO and CE certifications.

In the domestic market, we set up many offices in different cities, Beijing, Kunming, Hefei…And to the international market, in many countries, we have sales and service agent, USA, Peru, Brazil, India, Russia…. Our engineers have been to those countries to install our machines. Because of our machine good quality and good after-sales service, the customers give us very high commend.

We hope to set up very good and long cooperation with more customers around the word.
