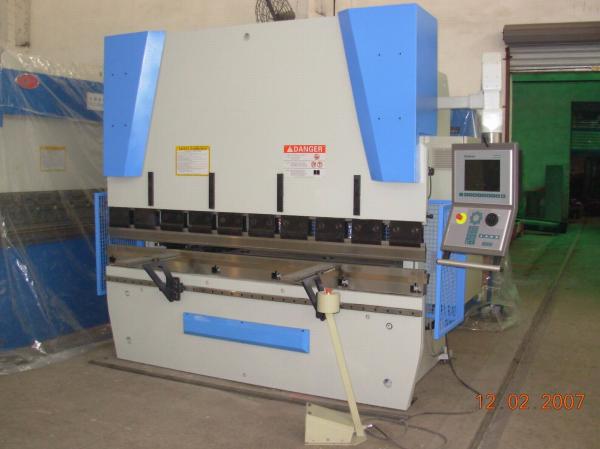

Delem Controller System CNC Press Brake Machine 100 Ton 3200mm /
4000mm
Production Introduction:
1. With stylish design, high rigidity, high speed
2. Electro-hydraulic servo system, closed loop control system
controls accuracy
3. Worktable adopts hydraulic deflection compensation to ensure the
accuracy of the workpiece
4. Back gauge is driven by servo motor, adopted ball-screw and
linear guide way, it could make sure positioning accuracy.
Technical Details:
Mode: WC67K-100/3200
Norminal Press: 100 ton
Length of Table: 3200mm
Distance between Housing: 2650mm
Throat Depth: 320mm
Ram Stroke: 100mm
Ram Speed: 60/8/40 mm/s
Open Height: 365 mm
Controller System: Chinese Famouse Brand: Estun E21, with ball
screw, inveter, encoder to control two axis: X&Y
Main Motor: 7.5 Kw
Volume of oil tank: 280L
Weight: 7500 kgs
Overall Dimensions: L 3430 mm
W 1820 mm
H 2495 mm
Model: WE67K-100/3200
Technical Details:
Norminal Press: 100 ton
Length of Table: 3200mm
Distance between Housing: 2650mm
Throat Depth: 320mm
Ram Stroke: 200mm
Ram Speed: 120/10/110 mm/s
Open Height: 475 mm
Main Motor: 7.5 Kw
Controller System: 1. Netherland Brand: Delem DA 52 2+1 axis:
Y1,Y2+ worktable crowning system
2. Netherland Brand: Delem DA52 3+1 axis: Y1,Y2, X + worktable
crowning system
3. Nether land Brand: Delem DA65W 4+1 axis: Y1,Y2,X,R+ worktable
crowning system
Volume of oil tank: 380L
Weight: 8700 kgs
Overall Dimensions: L 3450 mm
W 1955 mm
H 2565 mm
Mode: WC67K-100/4000
Norminal Press: 100 ton
Length of Table: 4000mm
Distance between Housing: 3100mm
Throat Depth: 320mm
Ram Stroke: 100mm
Ram Speed: 60/8/40 mm/s
Open Height: 365 mm
Controller System: Chinese Famouse Brand: Estun E21, with ball
screw, inveter, encoder to control two axis: X&Y
Main Motor: 7.5 Kw
Volume of oil tank: 280L
Weight: 8500 kgs
Overall Dimensions: L 4330 mm
W 1820 mm
H 2575 mm
Model: WE67K-100/4000
Technical Details:
Norminal Press: 100 ton
Length of Table: 4000mm
Distance between Housing: 3100mm
Throat Depth: 320mm
Ram Stroke: 200mm
Ram Speed: 120/10/110 mm/s
Open Height: 475 mm
Main Motor: 7.5 Kw
Controller System: 1. Netherland Brand: Delem DA 52 2+1 axis:
Y1,Y2+ worktable crowning system
2. Netherland Brand: Delem DA52 3+1 axis: Y1,Y2, X + worktable
crowning system
3. Nether land Brand: Delem DA65W 4+1 axis: Y1,Y2,X,R+ worktable
crowning system
Volume of oil tank: 380L
Weight: 11000 kgs
Overall Dimensions: L 4250 mm
W 1955 mm
H 2855 mm
Main Performance :
1 The frame of machine is composed of tank, worktable, left and
right housings and ram. So it has high strength and good rigidity.
Also it takes vibration to eliminate stress.
2 Adopting electric-hydraulic proportional valve to ensure the
synchronization of both cylinders. The proportional valve is made
by BOSCH company with very good performance such as small friction,
fine electronic amplifier and electric magnet with high controlling
force and continuous action. There are two raster displayers on
both sides of machine to inspect the position of ram continuously
and feed back the signal to control system, then the control system
will control electric-hydraulic valve to make two cylinders
synchronization on one machine. Because the raster displayers are
installed to “C” plates, not on housing plates directly, the
deflection of ram and frame when working will not effect its
measuring and controlling precision.
3 Through computer,the operator could communicate with machine. The
computer has several service language, calculate and adjust the
bending force automatically. Also it could calculate and control
the dead point, speed changing point.The strokes (Y1, Y2) of ram
could make a small tilt to meet the special requirement of user.
4 Equipped with good guiding system, position measuring system and
hydraulic balance system to meet the requirements of full length
job and eccentric job.
5 Worktable compensation unit is adopted to make up for deflection
of machine when working to make sure the precision of work piece.
6 The surface of cylinder has good wearing and heat treatment, so
it has good lubrication and long service life.
