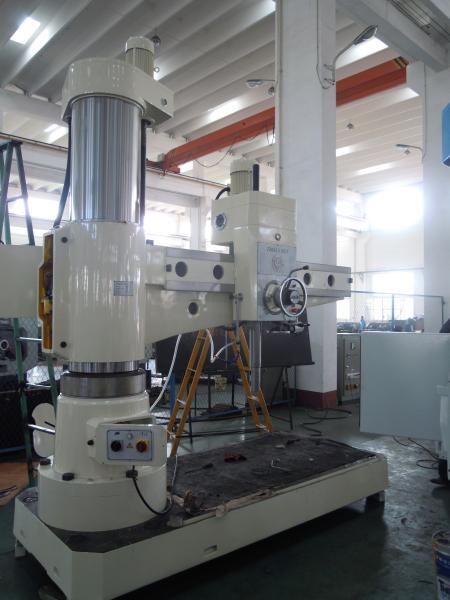

    Hydraulic Control Reaming Drill Press Radial Drilling Machine Large Workpieces

    Ask Lasest Price
    Brand Name : Jinqiu
    Model Number : Z3080x25
    Certification : CE and CQC
    Price : USD or RMB
    Payment Terms : L/C, T/T
    Supply Ability : 150 pcs per month
    Delivery Time : 55-60 days
    • Product Details
    • Company Profile

    Hydraulic Control Reaming Drill Press Radial Drilling Machine Large Workpieces


    Hydraulic Control Reaming Drill Press Radial Drilling Machine Large Workpieces


    Application:


    Have universal purposes, adaptable for driling, reaming, milling on middle and large workpieces, boring can be also operated

    Quick Details:


    Machine type: reaming drill
    Max drilling diameter: 80mm
    Advantage: Hydraulic control
    Clamp system: hydraulic type
    Ram motion: hydraulic control and manual operation

    Technical Parameters:
    Mode: Z3080x25


    Table800X560X1000
    Dimensions of Box Table800X1000
    T-slot of box7
    Distance between two adjacent T-slots150
    Width of T-slot of box22
    Dimensions of base3530X1400X300
    Working surface of base1200X2380
    T-slot/Width/Distance Of BASE4/28/276
    Max. load of Table
    machining range :
    Distance from spindle axis to column500-2500
    Distance from spindle nose to table surface550-2000
    spindle head travel(horizontal)
    spindle :-
    spindle taper(Morse No.6)
    Quill travel450
    Max.drilling diameter80
    Max.tapping diameter
    Speed Range /steps16-1250(16)
    Max.output torque of spindle1568
    Spindle feed/steps0.04-3.2/16
    Motor
    Spindle motor power7.5
    Elevating motor3
    Coolant pump0.125

    Packing list

    No.NameSpecificationQtyRemark
    1Machine1
    2Table1It is on the base of the machine.
    3Hexagon nutM248 pieces

    There are 4 pieces

    on the machine.

    4Hexagon nutM484 pieces
    5Hexagon boltM24 ×604 pieces

    They are all

    on the machine.

    6Foundation boltM24×6006 pieces
    7Foundation boltM48×8006 pieces
    8T-slot boltsM24×956 pieces

    There are 4 pieces

    on the machine.

    9Washer248 pieces

    There are 4 pieces

    on the machine.

    10Washer484 pieces

    There are 5 pieces

    on the machine.

    11Hanging sleeve1
    12Sling dog2
    13Sling2

    Technical document
    No.NameQtyRemark
    1Operation manual1
    2Radial drilling machine installation guide1
    3Packing list1
    4

    MT3/1;3/2;4/3;6/4; 6/5


    Each 1

    Wearing Parts:

    No.NameSpecificationQtyRemark
    1Washer45
    2Washer65
    3Washer85
    4Washer105
    5O shape ring7×1.95
    6O shape ring9×1.95
    7O shape ring11×1.95
    8O shape ring13×1.95

    Packageing & Delivery
    Packaging details:Plywood case
    Delivery detail: 55-60 days

    The Main Structure Character

    Welded steel plate, the frame consists of right and left wall boards, working table, oil box, slot steel and etc. The stress of the welded parts can be eliminated by vibration. The machine enjoys high accuracy and high strength and can be transported easily.


    Why Choose Us?
    Jinqiu is a famouse and long history brand in China, after more than 47 years research, our design from technology, structure and precision are very mature, many other factories just copy our outlooking, but the process is not advantages. And we also obtained the CE and more strict standard certification. Our machines distribute worldwide about 20 countries which penetrate into more metal plate industries.

    Questions:
    1. Are you a trading company or factory?
    --- We are factory occupying more than 62,000 m2, with excellent and professional technical team, 25 R&D personnel, professional after-sales team, and around 300 workers producing more than 1000sets machines each year.

    2. Does your company supply and build the machines to suit customer's needs and specifications?
    --- Yes, we can custom-made the machine according to your requirements.

    3. What is your advantages over your competitors' machine?
    --- Our machines can be equipped with high configuration, and main components are from famous brands. We have strict quality control system, process technology system, technology innovate system.

    4. Does the machine come with a guarantee?
    --- We offer one year of warranty, during this time, if any parts broken, we will send a new one to customer free of charge, and we will also supply on-line the technical guidance for ever free.

    5. Can I go to visit your factory?
    --- Welcome to visit our factory to know our processing and technology power. And you will see different sample machine at our workshop.

    6. How to get quicker quotation?
    --- When you send us inquiry, please offer your requirement information:
    • What kind of metal plate and the thickness?
    • How about your configuration requirement?
    • You also send us your bend products image, our engineer can design for you.
    These information is helpful for us to choose suitable equipment solution and price quickly.
