Automatic CNC Sheet Metal Cutting Machine With Follwing Founction

QC12K-6X2000

Technical Parameters:

Mode: QC12K-6X2000

Shearing Size: thickness 6mm, length 2000mm

Shearing Angle: 1 degree 30 seconds

Plate Clamps: 10 pieces

Strokes: 20 times per min

Back gauge range: 20-600 mm

Main Motor: 7.5 Kw

NC control system: China Estun E21S, with follwing founction:

1) control back gauge position

2) cutting gap control

3) cutting time control

Volume of oil tank: 220L

Weight: 4600 kgs

Overall Dimensions: Length 2590 mm

Width 1610 mm

Height 1720 mm

QC12K-6X2500

Technical Parameters:

Mode: QC12K-6X2500

Shearing Size: thickness 6mm, length 2500mm

Shearing Angle: 1 degree 30 seconds

Plate Clamps: 13 pieces

Strokes: 18 times per min

Back gauge range: 20-600 mm

Main Motor: 7.5 Kw

NC control system: China Estun E21S, with follwing founction:

1) control back gauge position

2) cutting gap control

3) cutting time control

4) parameter backup and restore

Volume of oil tank: 247L

Weight: 5250 kgs

Overall Dimensions: Length 3140 mm

Width 1610 mm

Height 1630 mm

QC12K-6X3200

Technical Parameters:

Mode: QC12K-6X3200

Shearing Size: thickness 6mm, length 3200mm

Shearing Angle: 1 degree 30 seconds

Plate Clamps: 14 pieces

Strokes: 14 times per min

Back gauge range: 20-600 mm

Main Motor: 7.5 Kw

NC control system: China Estun E21S, with follwing founction:

1) control back gauge position

2) cutting gap control

3) cutting time control

4) parameter backup and restore

Volume of oil tank: 247L

Weight: 6260 kgs

Overall Dimensions: Length 3840 mm

Width 1610 mm

Height 1630 mm

QC12K-6X4000

Technical Parameters:

Mode: QC12K-6X4000

Shearing Size: thickness 6mm, length 4000mm

Shearing Angle: 1 degree 30 seconds

Plate Clamps: 18 pieces

Strokes: 12 times per min

Back gauge range: 20-600 mm

Main Motor: 11 Kw

NC control system: China Estun E21S, with follwing founction:

1) control back gauge position

2) cutting gap control

3) cutting time control

4) parameter backup and restore

Volume of oil tank: 315 L

Weight: 8900 kgs

Overall Dimensions: Length 4660 mm

Width 1670 mm

Height 1830 mm

QC12K-6X5000

Technical Parameters:

Mode: QC12K-6X5000

Shearing Size: thickness 6mm, length 5000mm

Shearing Angle: 1 degree 30 seconds

Plate Clamps: 22 pieces

Strokes: 7 times per min

Back gauge range: 20-800 mm

Main Motor: 11 Kw

NC control system: China Estun E21S, with follwing founction:

1) control back gauge position

2) cutting gap control

3) cutting time control

4) parameter backup and restore

Volume of oil tank: 587L

Weight: 15800 kgs

Overall Dimensions: Length 5770 mm

Width 2152 mm

Height 2065 mm

QC12K-6X6000

Technical Parameters:

Mode: QC12K-6X6000

Shearing Size: thickness 6mm, length 6000mm

Shearing Angle: 1 degree 30 seconds

Plate Clamps: 25 pieces

Strokes: 7 times per min

Back gauge range: 20-800 mm

Main Motor: 15 Kw

NC control system: China Estun E21S, with follwing founction:

1) control back gauge position

2) cutting gap control

3) cutting time control

4) parameter backup and restore

Volume of oil tank: 689L

Weight: 22200 kgs

Overall Dimensions: Length 6800 mm

Width 2300 mm

Height 2360 mm

Product introduction:

1. Swing beam type top blade, hydraulic driven, stable and reliable, easy to operate

2. Blade gap can be adjusted accurately and rapidly; top blade stroke can be adjusted stepless to improve cutting speed

3. Matching variety of back gauges and blade which controled by CNC system

Quick Details:

Condition: New

Material/ Metal Processed: Carbon Steel Q235 or Q345

Extra Service: Machining

Electric componets: Schneider famous brand

Other parts: Ball screw, servo motor....

Place of Origin: Wuxi city, Jiangsu, China,

Machine Type: Hyraulic Shearing Mchine

Power: Hydraulic

Color: white, blue, yellow....

Control syste: E200S, DAC310,DAC 360, OR DTC660

Usage range: cutting metal sheet.

Packageing & Delivery

Packaging details: metal frame pallet

Delivery detail: 55-60 days

Welded steel plate, the frame consists of right and left wall boards, working table, oil box, slot steel and etc. The stress of the welded parts can be eliminated by vibration. The machine enjoys high accuracy and high strength and can be transported easily.

Why Choose Us?

Jinqiu is a famouse and long history brand in China, after more than 47 years research, our design from technology, structure and precision are very mature, many other factories just copy our outlooking, but the process is not advantages. And we also obtained the CE and more strict standard certification. Our machines distribute worldwide about 20 countries which penetrate into more metal plate industries.

Questions:

1. Are you a trading company or factory?
--- We are factory occupying more than 62,000 m2, with excellent and professional technical team, 25 R&D personnel, professional after-sales team, and around 300 workers producing more than 1000sets machines each year.

2. Does your company supply and build the machines to suit customer's needs and specifications?
--- Yes, we can custom-made the machine according to your requirements.

3. What is your advantages over your competitors' machine?
--- Our machines can be equipped with high configuration, and main components are from famous brands. We have strict quality control system, process technology system, technology innovate system.

4. Does the machine come with a guarantee?
--- We offer one year of warranty, during this time, if any parts broken, we will send a new one to customer free of charge, and we will also supply on-line the technical guidance for ever free.

5. Can I go to visit your factory?
--- Welcome to visit our factory to know our processing and technology power. And you will see different sample machine at our workshop.

6. How to get quicker quotation?
--- When you send us inquiry, please offer your requirement information:
• What kind of metal plate and the thickness?
• How about your configuration requirement?
• You also send us your bend products image, our engineer can design for you.
These information is helpful for us to choose suitable equipment solution and price quickly.

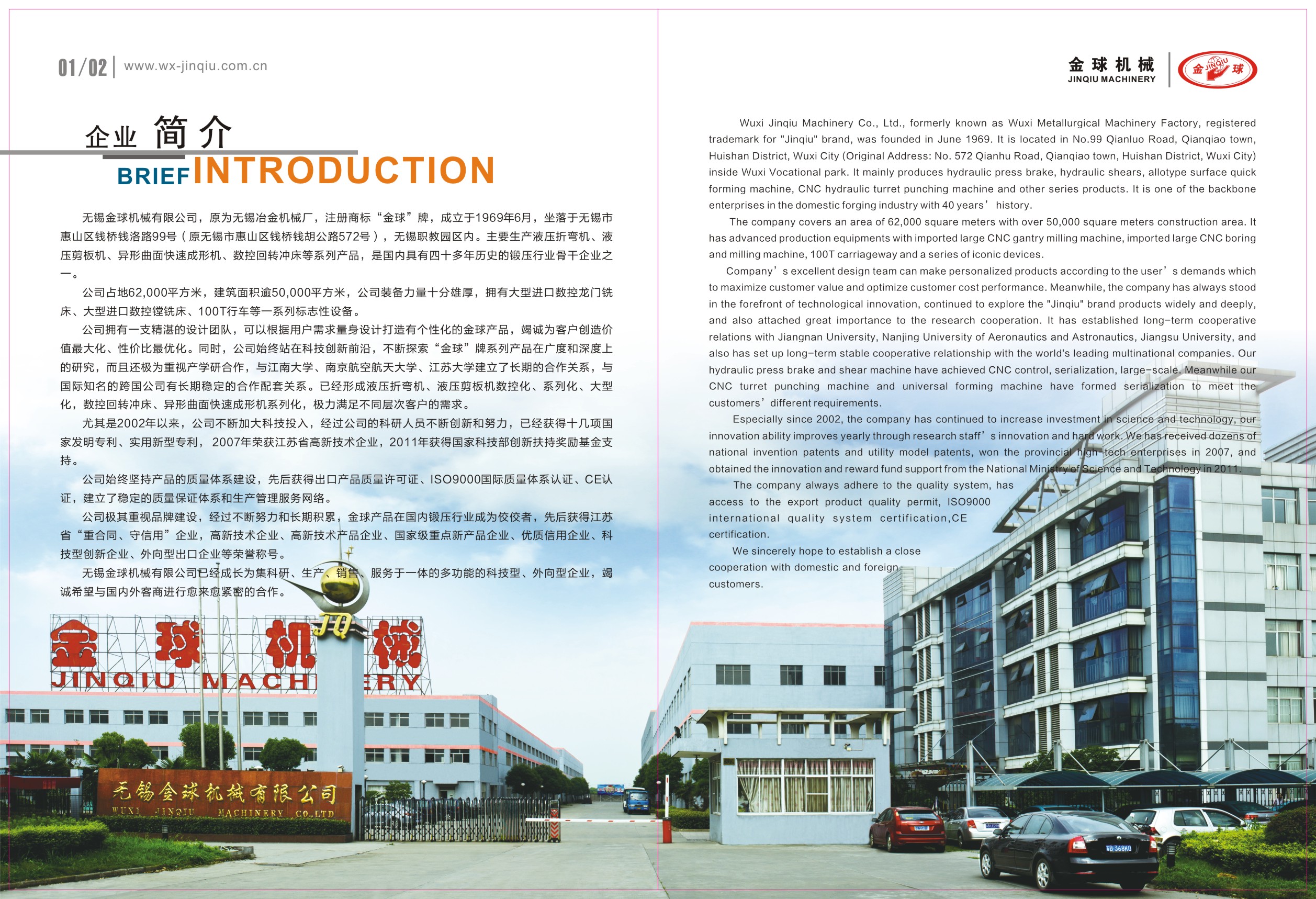

WxiJiniu Machinery Co.,ltd. formerly known as Wuxi Metallurgical Machinery Factory, registered trademark for "Jinqiu" brand, was founded in June 1969. It is in Wuxi city, 150 kilometers far from Shanghai city. We have been to stated enterprise, since 2002, we recombined to private company, and got fast development, we are one big group now, our group mainly produces hydraulic press brake, hydraulic shears, coiling feeding line--especially for aluimnum cap making, slitting line, cut to length, transformer machines....and other series product. It is one of the earliest factory in China to make these metal sheet machines.

The company covers an area of 62,000 square meters with 300 people. It has advanced production equipment’s with imported large CNC gantry milling machine, imported large CNC boring and milling machine, 100-ton carriageway and a series of iconic devices. Our excellent design team can make personalized products according to the users’ demands. At the same time, we have established long-term cooperation with some famous university, such as Jiangnan university, Nanjing University, Jiangsu University. Through our research staff innovation and hard work, we have received dozens of patents. At the same time, we have ISO and CE certifications.

In the domestic market, we set up many offices in different cities, Beijing, Kunming, Hefei…And to the international market, in many countries, we have sales and service agent, USA, Peru, Brazil, India, Russia…. Our engineers have been to those countries to install our machines. Because of our machine good quality and good after-sales service, the customers give us very high commend.

We hope to set up very good and long cooperation with more customers around the word.
