    Metal Spinning Lathe Machine Bucket / Horn / Cone / Parabolic Product Making Machine

    Ask Lasest Price
    Brand Name : jinqiu
    Model Number : SG500
    Certification : CE and CQC
    Price : USD or RMB
    Delivery Time : 60 DAYS
    • Product Details
    • Company Profile

    Metal Spinning Lathe Machine Bucket / Horn / Cone / Parabolic Product Making Machine

    Bucket/horn/cone/parabolic product making machine- CNC spinning and turning machine


    Application:

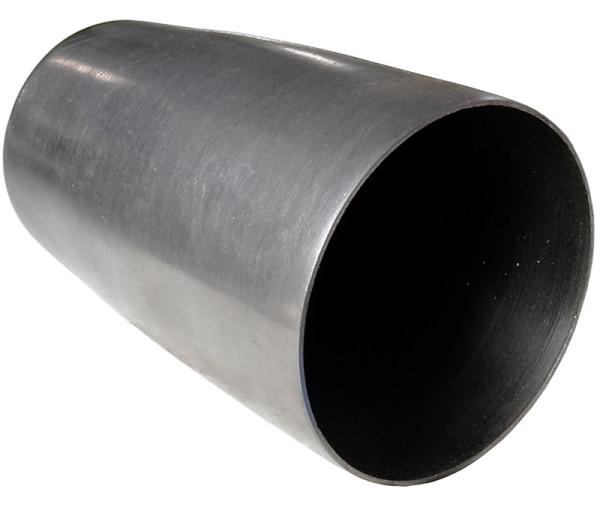

    SG500 CNC Spinning and Turning Machine(Single Roller) is especially developed to make lights, art wares,kitchen hardwares and auto fittings. It got many patents issued by the State Intellectual Property Office. This device is practical, professional and strong. the lathe has high production efficiency and can complete horn, bucket, cone type, parabolic products. It can also make threading, trimming, flanging and rolling at the same machine tool. it can spin many materials such as carbon steel, stainless steel, aluminum and copper etc. It has solved the traditional problems such as lack of skilled workers. With advanced digital control, it is easy to operate. The machine can improve the production efficiency, machining accuracy and saving the cost of human resources. It is the ideal processing machine for light, automobile, mechanic and other manufacturing industries.


    Main Features & Standard Configurations:

    * Feeding axles and spindle are control by servo motor

    * Hydraulic tailstock.

    * Integrated automatic lubrication system makes the maintenance more reliable.

    * Choose Siemens 808D CNC system with USB port.

    * Meehanite cast iron after aging treatment, with high quality and less deformation.

    * Adopt independent spindle unit to ensure good movement precision, stiffness and stability.

    * High Precision ball screws to make sure dynamic performance well and positioning accurately.

    * Configuration cooling pump.

    * Mobile manual pulse generator makes easy to operate.

    * Semi-enclosed shield.


    ItemsTechnical Parameters
    ModelSG500
    Amount of Rollers1+
    Max. Diameter of materialΦ500 mm
    Max. Spinning Diameter<Φ500 mm
    Max. Length of Work Piece300 mm
    Thickness of material0.5-2.5 mm (Aluminum,Copper) 0.5-1.2 mm ( Carbon Steel) 0.5-1.0 mm (Stainless Steel)
    X-axis Strokes300 mm
    Z-axis Strokes320 mm
    X-axis Force30 kN
    Z-axis Force30 kN
    Tailstock Force20 kN
    Guide Rail kindsLinear Guide Rail
    Bed width320 mm
    Rapid Traverse X/Z-axis12/16 m/min
    Servo Torque X/Z-axis7.5/10 N.m
    Pulse Equivalent X/Z-axis0.001 mm
    Positioning Precision0.010 mm
    Repetitive Positioning Accuracy0.006 mm
    Spindle NoseC6
    Spindle TaperMT6
    Spindle BoreΦ52 mm
    Spindle Speed2500 rpm
    Taper of Tailstock QuillMT5
    Tailstock Stroke250 mm
    Stroke of Tailstock Quill200 mm
    Diameter of Tailstock QuillΦ82 mm
    Tools / Shank Size amount6/25x25 mm²
    Spindle Motor Power7.5 kw
    Hydraulic Power1.5 kw
    Machining AccuracyIt 6
    Surface RoughnessRa 1.25
    Service Voltage380V AC
    Power Capacity12 KVA
    Overall Dimensions2.5x1.3x1.6 m³
    Net Weight2500 kg
