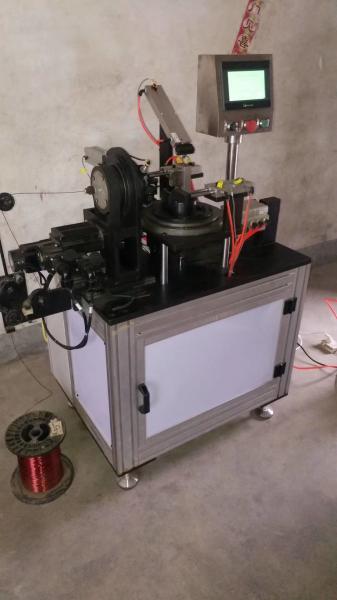

    Heavy Duty Automotive Wire Winding Machine Automatic 48 - Slot Stators 120mm

    Ask Lasest Price
    Brand Name : Jinqiu
    Model Number : DX series
    Certification : CE and CQC
    Price : USD or RMB
    Payment Terms : L/C, T/T
    Supply Ability : 150 pcs per month
    Delivery Time : 55-60 days
    • Product Details
    • Company Profile

    Heavy Duty Automotive Wire Winding Machine Automatic 48 - Slot Stators 120mm


    Heavy duty stator Stator Wire Inserting Machine / wedging machine

    Suitable for automotive generator stator three-phase one-time embedded and cover groove wedge of special equipment. Mitsubishi PLC control. Color touch screen operation and fault diagnosis, servo motor drive ball screw and push into the coil into the slot, the stroke control is accurate, uniform speed, the use of integrated wire tooling, replacement is simple and convenient, long service life, high efficiency.

    技术参数/Technicai Parameters

    输入电压Input voltageAC380V±10% 50Hz
    气源压力Air pressure0.5~0.7MPa
    总功率Total power4kw
    定子内径Stator IDΦ60~Φ120mm
    定子外径Stator OD≤Φ210 mm
    铁芯厚度Core thickness20~130mm
    槽数Slots36/48
    线径范围Wire Range0.15~1.6mm

    Model Stator Forming Machine

    Suitable for generator stator coil embedded line, the coil end of the special equipment shaping.Mitsubishi PLC program control, the Chinese LCD display interface, the machine has a horizontal to the heart to promote the shape of the upper and lower winding, the stator winding stator diameter, Four parts, very convenient, suitable for multi-species production.

    Technicai Parameters

    电源电压Supply voltageAC380V±10% 50Hz
    总功率Total power3kw
    液压压力Hydraulic Pressure0~7MPa
    最大定子内径Max.Stator ID≤Φ120 mm
    最小定子内径Stator ID≥Φ60 mm
    定子叠厚Core thickness15~60mm

    Model Wave Shape Coil Winding Machine

    This machine is suitable for automatic winding of the three-phase stator wave windings of the automobile generator and automatic multi-times pushing coils to claw. Adopting international advanced double pulley double steel wire design, the steel wire has long service life. This machine is suitable and reliable for winding thick wire. It adopts PLC program control, color touch screen for setting parameters, servo motor for winding and arraying. It has functions of automatic multi-times pushing into tooling, automatic cutting, automatic turning, automatic winding and automatic pushing into the claws, and fault self-diagnosis display. It can complete of two three-phase stators coils at one time.

    技术参数/Technicai Parameters

    电源电压Supply voltageAC380V±10%50Hz
    气源压力Air pressure0.5~0.7MPa
    总功率Total power3kw
    绕线直径Wire diameter≤Φ1.7mm
    线径范围Wire Range0.5~3mm
    定子内径Stator IDΦ70~Φ150mm
    定子厚度Stator thickness5~100mm
