    Round Small Transformer Tank Body Making Machine 1220mm

    Ask Lasest Price
    Brand Name : GREMET
    Model Number : 1220
    Certification : CE,ISO
    Price : RMB or USD
    Payment Terms : T/T, L/C
    Delivery Time : 30 DAYS
    • Product Details
    • Company Profile

    Round Small Transformer Tank Body Making Machine 1220mm

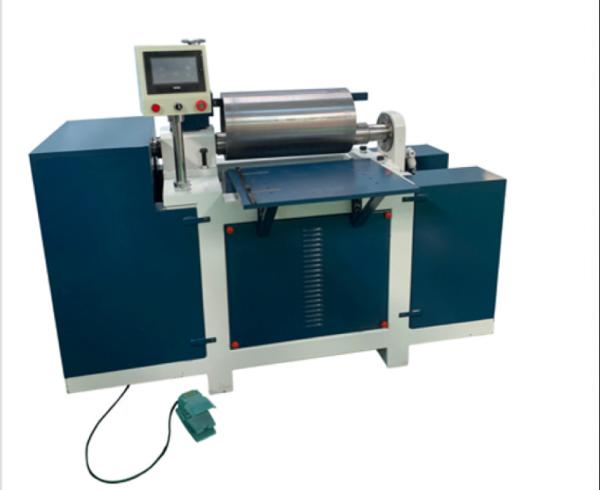

    Machine 1: machine with Φ 310 mold, machine weight is 1000kgs. size: 1300x1200x700

    This machine is to roll the sheet into round for tansformer body.


    Material thickness: mild steel 1.9,2.4,and 3 mm

    Stainless steel 2.5 mm

    Material diameter: diameter range: from. 310 mm to 655 mm

    Tank height/length: height range: from. 500 mm to 1220 mm


    Machine 2 machine with welding source,machine weight is 200kgs, size: 1380x600x700

    This machine is for welding the transformer tank/cylinder body after rolling.



    Material thickness: mild steel 1.9,2.4,and 3 mm

    Stainless steel 2.5 mm

    Material diameter: diameter range: from. 310 mm to 655 mm

    Tank height/length: height range:from. 500 mm to 1220 mm


    Machine 3 machine with Φ 310 mold, machine weight is 480kgs,size: 1400x1000x2200

    this machine is used to make the cover edge forming


    For this cover edge forming machine:


    1. Cover diameter range: from. 310 mm to 655 mm
    2. Cover thickness range: mild steel 1.9,2.4,and 3 mm

    Stainless steel 2.5 mm


    machine 4: machine Φ 310 mold, machine weight is 880kgs. size: 1500x1200x700


    Tank body edge spinning machine

    1. tank diameter range: from. 310 mm to 655 mm
    2. tank thickness range: mild steel 1.9,2.4,and 3 mm

    Stainless steel 2.5 mm

    1. Tank height/length: height range: from. 500 mm to 1220 mm

    Machine 5 machine one mold/tooling, machine weight is 180kgs. size: 800x600x800



    1. pre-machined length: 1012 -2115 mm
    2. mild steel 1.9,2.4,and 3 mm

    Stainless steel 2.5 mm

    1. bent angle: 90 grades angle steel

    Quality Round Small Transformer Tank Body Making Machine 1220mm for sale
