Product overview

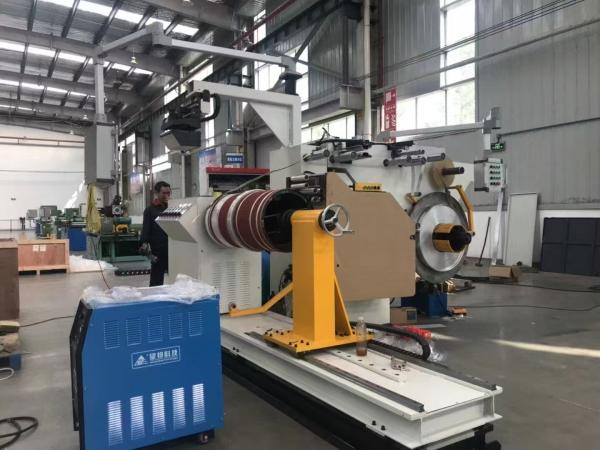

GYBRJ-1500 High pressure foil winding machine is designed for efficient and safe production of segmented, round/oval foil coils. The coil is a single layer of copper foil or aluminum foil segmented coil with no more than two layers of insulation between the layers. The incoming and outgoing leads of the coil are welded at the customer's discretion. This high pressure foil winding machine is designed for efficient and safe production of segmented CNC moving position, circular/oval foil coil design.

Control mode:

The device can be started after setting the total number of coil hits, the number of each hit and the distance between each interval in the touch screen. After winding a section, the servo motor is used to automatically move each distance. Therefore, the design process of each interval is blocked with different sizes, requiring the automatic displacement of starting foot points. The tension of insulating paper is controlled by electric tension, the digital control is direct and accurate, and the tension of foil tape is controlled by gas-electric mixing system.

Summary:

The high pressure foil winding machine is designed for efficient and safe production of segmented, circular foil coil and numerical control movement, numerical control layer. The segmented coil can be set to 10 segments. Each winding section will automatically stop the prompt to complete, and the touch screen control system will automatically prompt the complete winding of the entire coil.

High pressure GYBRJ-1500Technical parameters
