Brief Introduction:

Transformer vacuum drying equipment is improved on the basis of our company at home and abroad, and I am in the vacuum equipment design, manufacturing experience, user experience and developed, and
the equipment is mainly used for oil-immersed transformers,transformers,capacitors, reactors, and other products of the body is dry, than conventional vacuum drying reduces drying time 40%--50%,Is a reliable, energy-efficient technology and equipment equipment.
Scope of application: 10-110KV Level,100000KV Capacity of dry transformer 110-500KV Voltage transformer coil dry.
Transformation method of vacuum drying equipment for product heating, vacuum tank is dry evaporation of water vapor as a heat transfer medium, in the heater and the dry heat exchange products. This heating is similar to coal, oil and gas-phase dry heat. Heater uniformity is very good, high heating efficiency and reliability.

Main Technical Characteristics:

1,This equipment is mainly used for the 35KV,110KV220KV Vacuum drying of transformers,the device runs low cost efficiency and so on.
2,Device vacuum drying system low temperature condensation system, transformers, vacuum unit, heating systems, pneumatic tube system, cooling system, hydraulic locking system and the control system.

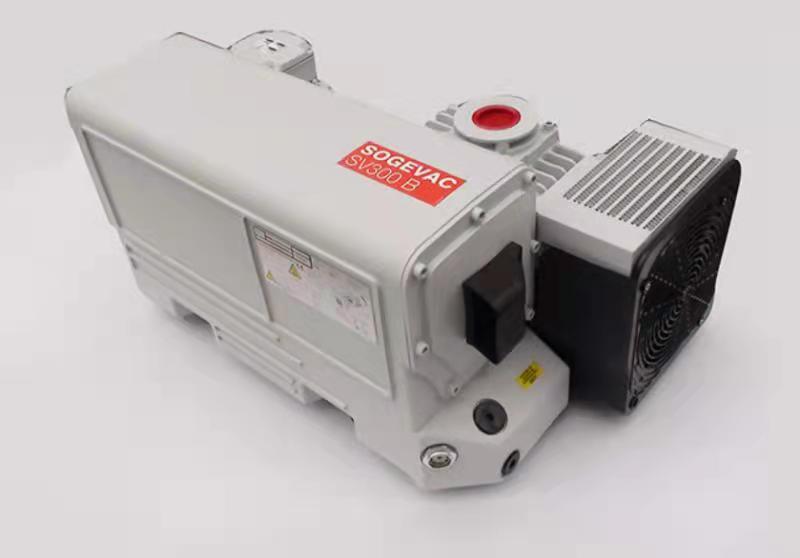

3,Vacuum, vacuum units selection of vacuum pump with the oil-water separation, and reduced operating costs.
4,Use of electricity, heating system and heat-conducting oil heating,
heat conduction oil, heat to the tank, safety, reliability, low running costs.
5,Condenser uses latest achievements in the world, horizontal condenser, stainless steel manufacture, recovery water automatic control. Configure chiller provides 10 degrees cold water system is installed below the condensation, ensure that the condensation effect.
6,Shut the door automatically, motor, hydraulic lock.
7,Electric control system with touch-screen control, automatic control.
8,Compared with traditional vacuum drying and energy saving 35% Above.

WxiJiniu Machinery Co.,ltd. formerly known as Wuxi Metallurgical Machinery Factory, registered trademark for "Jinqiu" brand, was founded in June 1969. It is in Wuxi city, 150 kilometers far from Shanghai city. We have been to stated enterprise, since 2002, we recombined to private company, and got fast development, we are one big group now, our group mainly produces hydraulic press brake, hydraulic shears, coiling feeding line--especially for aluimnum cap making, slitting line, cut to length, transformer machines....and other series product. It is one of the earliest factory in China to make these metal sheet machines.

The company covers an area of 62,000 square meters with 300 people. It has advanced production equipment’s with imported large CNC gantry milling machine, imported large CNC boring and milling machine, 100-ton carriageway and a series of iconic devices. Our excellent design team can make personalized products according to the users’ demands. At the same time, we have established long-term cooperation with some famous university, such as Jiangnan university, Nanjing University, Jiangsu University. Through our research staff innovation and hard work, we have received dozens of patents. At the same time, we have ISO and CE certifications.

In the domestic market, we set up many offices in different cities, Beijing, Kunming, Hefei…And to the international market, in many countries, we have sales and service agent, USA, Peru, Brazil, India, Russia…. Our engineers have been to those countries to install our machines. Because of our machine good quality and good after-sales service, the customers give us very high commend.

We hope to set up very good and long cooperation with more customers around the word.
